Description:
Mux Central Control Panel Built in Wireless Zigbee Hub 3 Inches Touch Panel Control Mux Life APP Device
Mux Version:
- Compatible with European standard wall boxes, simple in wall installation.

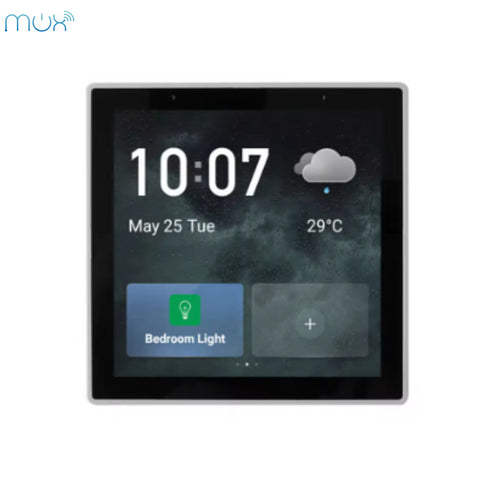

- 3-inch HD LCD, IPS, multi touch screen.
- ZigBee gateway function, APP remote control. A good substitute for another Mux ZigBee gateway at home, and directly use the control panel as a gateway for adding Mux ZigBee devices in App for intelligent controls, up to 80 ZigBee sub devices available for being added.

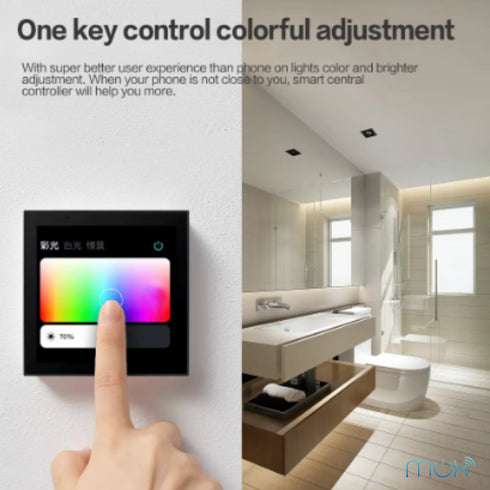

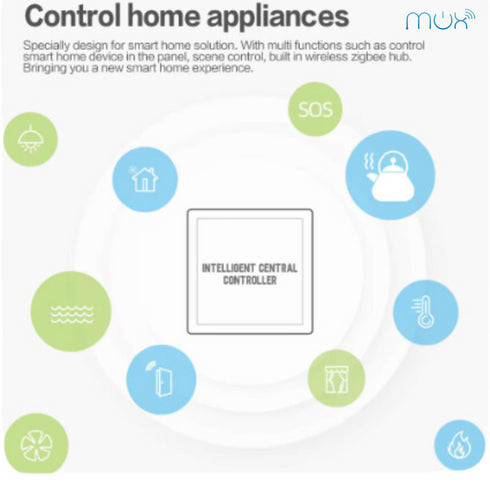

- Control the lights, curtains, air conditioners, and all other smart home devices. Configure Smart Home scenes in the APP, turn on the scene mode with one touch on the screen.
- One Smart Control Panel could control all your smart switches, smart plugs, lights, air conditioners, curtains, security locks, smart sensors, up to 80pcs Mux Zigbee sub devices.
Alexa Version:
- A 3-inch HD LCD multi touch screen, which can also function as an Alexa voice assistant.
- Compatible with European standard wall boxes, simple in wall installation.
- Built in multimode gateway, directly connected to Bluetooth and Zigbee sub devices. A good substitute for another Mux ZigBee gateway at home ,and directly use the control panel as a gateway for adding Mux ZigBee devices in App for intelligent controls.
- One Smart Control Panel could control all your smart switches, smart plugs, lights, air conditioners, curtains, security locks, smart sensors, camera and video doorbell, up to 128 pcs Mux Zigbee sub devices and 10pcs BLE sub devices.
- Linux system for smoother long-term operation, which supports languages such as Chinese, English, German, French, and Spanish.
Specifications:
- Product Name: Smart Multi-functional Control Panel
- Input Power: 100-240VAC,50/60Hz
- Working Temperature: 0℃~40℃
- Working Humidity: 5%-90%RH(non-condensing)
- Wireless Protocol: ZigBee

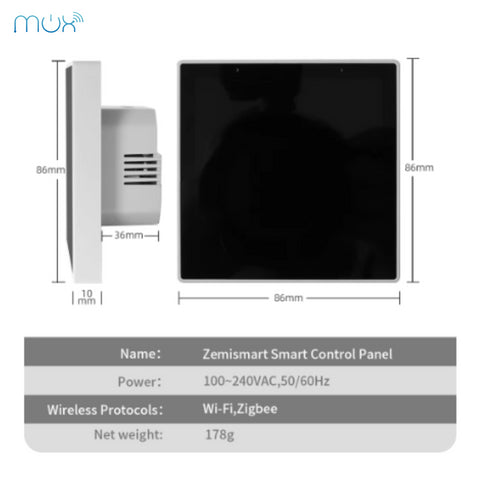

- Dimensions: 86x86x10 mm (without the base | outside the wall ) 86x86x36.6 mm (with the base) 60.9x62.9x24.6mm (back base dimension) Bolt hole spacing 60mm.
Installation instructions:
- Turn off the main power in the electricity box and confirm the fire wire is not alive with a test pencil.
- Remove the base of the Smart Switch and install it in the wall box.
- Check the wires and make sure the wires are in good contact with the terminals and no exposed copper wires.
- Fasten the base to the wall box with mounting screws and fix the Smart Switch back to the base.
- Note that the screws should not be fixed too tight during installation in case of any deformation or damage to the screen and hardware.
- If the Smart Switch is not flat after installation, do not press the screen violently, please check the wall box and the base installation first.
Local Warranty
Local warranty includes upto 5 years of replacement warranty of the device keeping intact your trust
Technical Support
Technical support includes Mux team providing online and on-site configuration, programming and installation services to you ensuring better user experience
WHY CHOOSE MUX LIFE
Convenience
Have complete control of your home/office on a single mobile app from anywhere.
Efficiency
Check the status of your devices from anywhere and turnoff unnecessary devices.
Automation
Full control of who has access to your property with mux smart devices.
