Description:

Smart Home Control Panel, Dimmer and Background Music Player, 8'' Switch Panel in-Wall Touchscreen Control for Various Mux Smart Appliances

About F8- Multifunction combination Center Control Screen

EASY SMART HOME CONTROL FOR EVERYONE: Brilliant touch screen panels with built-in Mux Smart APP make it easy for everyone at home to control popular smart devices, lighting, locks, thermostats, scenes and more by simply.

EASY TO REPLACE: You only need to connect the wires hidden in the wall to the dimmer. If you need, you can quickly connect your home theater speakers and fix them on the wall. The whole process only takes 15 minutes.

MAKE YOUR HOME SMARTER: You can set up different scenes and let different smart home appliances match your life. You no longer need to look for remote controls for air conditioners everywhere, and you don't need to use many switches. You only need to tap when you enter the door, and a romantic dinner will be accompanied. With just the right warm light, soothing music will appear immediately.

 MUX LIGHTS & SMART LOCK CONTROL: Now everyone at home can easily browse and play music with different brand speakers, control any smart lights in your home, and unlock the door with a compatible smart lock-all without needing a phone.

INSTALL THE APP YOU WANT: This machine comes with a 8GB TF card, you can download your favorite music player or other APP to the card, and you can apply all the programs after inserting the card.

F8 Smart Control Panel Specifications:

Characteristic: Dual 86 base case, can be used in combination, center control, background music.

Voice: Spics 4MIC Far field wake-up, up to 10-12m 4MIC Hello! Xianzhi, Support for modifying wake-up words (custom)

Content: Support voice on demand Mi Gu music, children's education, crosstalk, skits, opera, historical stories, fairy tales and fables, children's enlightenment, Xiehouyu, brain teasers, poems, idioms, translation, stock query, chicken soup for the soul, food nutrition, recipe query, mathematical operations, alarm clock.

Education content: Children 1-3 years old enlightenment education content, children, stories, Sinology, general knowledge preschool, master tutor content one age - junior high school, support remote control selection to watch

APP on demand:  Support exclusive APP binding, on-demand play music, children's education content, control devices (Xiao listen to music)

Smart home : Mux IOT

Music scene : Select different music based on different scenarios

Wallpaper switch : Custom wallpaper switch, style switch

Play Music on Time : Supports multiple segments of timed music playback, select the appropriate volume, Spotify music.

F8 Smart Home Control Panel Parameters

Size: 25*13.3*10cm

Operating system: Android 8.1 System

CPU model: Four nuclear Cortex-A35

CPU frequency : 1.5GHZ

CPU auditing: Four nuclear

Main screen size: 8"

Resolution ratio: 1280*800

Material : IPS (Full View)

Touch screen: Multi Touch capacitive screen Storage

Fuselage memory: 2GB

Expand TF card memory : 8GB

USB 2.0 interface : 32 GB read

Network: Zigbee WIFI Support

Output power: 2*(10-25W) (TI digital tapping)

Output impedance: 4 to 8

Total harmonic distortion: 0.03%(1W.1KHZ)

Frequency response : 20Hz-20KHz

Audio To Noise Ratio : 98db

Bluetooth Version : 4.0

IOT : Mux /ZIGBEE Lights, outlets, air conditioning, scenes, groups, video doorbells, curtains

Relay: 2 way light control, less than 200W

Bring their own horn : 1 w small horn

Audio formats: MP3, WAV, WMA, FLAC, APE, and ACC, AC3, OGG audio formats

Video format : The MPEG - 1/2/3/4, the RM/RMVB, WMV, MOV, MK, VOB, AVI, 3 gap, H, 264 video format, etc.

Power input : AC110-250V

Audio input: AUX, one group

Audio output: a group



F8 Multi Functional Intelligent Central Control Screen Other Functions:

1. Mobile APP control, voice intercom, broadcast, APP push content

2. Support voice wake-up, play music, stories, children's songs, tell jokes, check the weather, check the flight, smart

home control

3. Bluetooth playback, the host can control the Bluetooth playback device to switch music

4. Play music at regular intervals, start songs at regular intervals, and play specified music at regular intervals

5. Support external devices to control the device through 485

6. Local, TF card, U disk, Bluetooth, play music

7. 485: supports bidirectional 485 control

8. SDK is open and connected to smart home

Separated Magnetic Suction Design:

It's easy to install in one suction. Exclusive magnetic suction design on the back, with large suction and no easy falling off, which can be easily installed by every-one without tools.

Full scene personalization: Timed scene/Perceptual wake-up/Intelligent question and answer/User-defined discourse.

Support Mux App, One click binding of intelligent devices

1. Support voice Control graffiti ecological products.

2. Support sensor linkage scenarios

3. Support scene linkage playing music.

4. Support self question and answer.

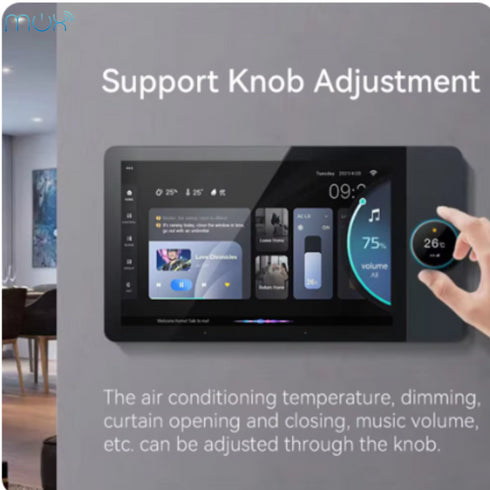

Support Knob Adjustment

The air conditioning temperature, dimming, curtain opening and closing, music volume etc, can be adjusted through the knob.



Newly Developed Host Speaker Can Switch Freely.

The industry's first support for free switching between its own speakers and external speakers. Meet the needs of different scenarios.

With loudspeaker-Bluetooth speaker/amplifier,  Click to switch between big and small speakers freely.

The host has its own 2W speaker; it can be used for wake-up, response and scene linkage play; The host is equipped with a high- power amplifier, which can be connected 2* 25w two speakers; Customers who need to listen to music can choose from their own speakers, Bluetooth Speakers and high-power amplifiers.



Support WiFi, Zigbee, 485 Smart Home Control

To meet the needs of smart home customers in different fields and industries



No need to change the line, hit the Wall and replace the original position

Dual 86 bottom box design, which can directly replace some existing dual 86 devices.





High appearance, high quality and low cost

Integrate voice ,gateway, music and other functions, and connect with the graffiti hotel system.

In some diversified management scenarios, the system itself has a certain administrator mechanism, which can be applied to hotels, shopping malls and real estate projects. Adhering to the concept of high appearance, high quality and low cost, the central control screen can be applied to more use scenarios.



Powerful home appliance control center, Including all kinds of intelligent hardware.

Smart Life App Remote Control

Support Mux system smart home control. A mobile phone wherever you are can be controlled at any time.

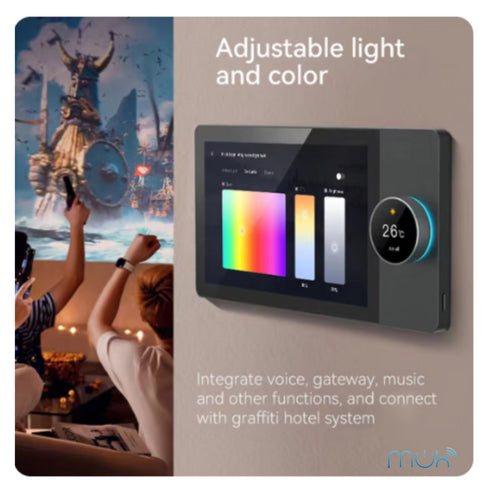

 Adjustable light and color

Integrate voice, gateway, music and other functions, and connect with graffiti hotel systems.



Super Strong Bass Coaxial Ceiling Speaker

The surround sound of the whole house layout forms a three-dimensional surround sound field with a sense of encircling and sock.

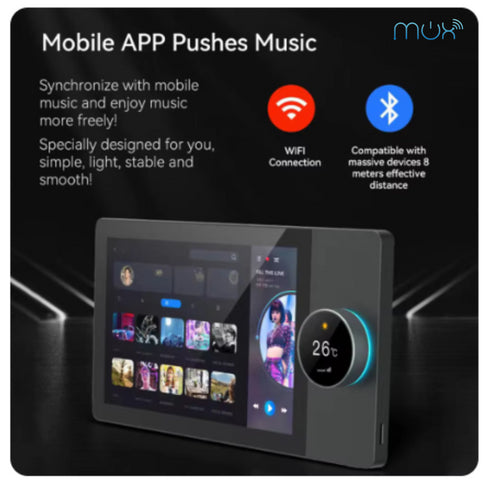

Mobile App Pushes Music

Synchronize with mobile music and enjoy music more freely!

Especially designed for you, simple, light, stable and smooth.

1.  Wifi Connection,

2.  Bluetooth connection, Compatible with massive devices 8 meters effective distance



Enjoy thousands of authentic music, You can listen to the massive music library resources.

Access to authentic audio resources, and cooperate deeply with the largest audio sharing platform in China, Himalaya, so that you can experience more massive audio resources. Hundreds of millions of audio platforms are updated synchronously, and support wireless push of third-party music platforms, allowing you to enjoy freely.
