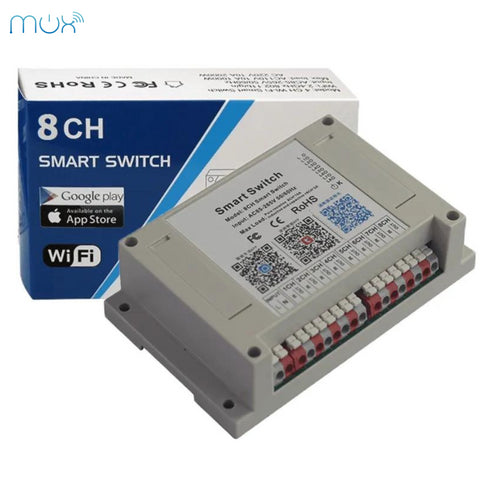

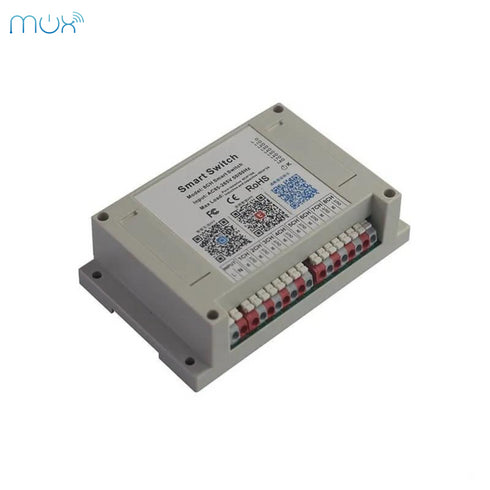

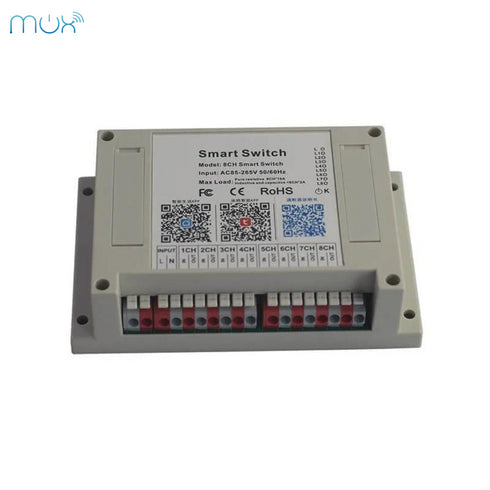

Smart Internal Switch 8 Gang

Description:

This product gives you the ability to connect and control up to 8 different electrical devices that can be turned on and off separately - independently or all at once - through the Smart Life (Mux) app.

Each of the 8 channels is equipped with a separate 10A relay .

The channels function completely independently of each other, allowing you to select and control a specific channel (chain/loop) without affecting the others.

Features of 8 Channel WiFi Relay Switch

MANAGEMENT

• Mobile application - use the free Smart Life (Mux) application, which is compatible with Android and iOS operating systems, to control the device.



• Voice control - integration with Amazon Alexa or Google Assistant voice assistants for ease of control.



• Automation – the ability to set automatic ons and offs according to specific circumstances or impacts from other compatible devices.



• By time schedule – setting a work schedule according to your needs.



No matter how you manage individual channels or the overall controller, channel status is synchronized in real-time for accurate viewing and control.

RELAY STATUS WHEN POWER IS RESTORED

This function allows you to determine what the state of the relay will be after an interruption and subsequent resumption of the power supply:

• to activate



• to remain excluded



• to return to the state it was in before the power failure



SCHEDULER AND TIMER

These features allow you to schedule on and off tasks from within the app, as well as set a countdown timer and cycle on/off time.

• TIMER – set a countdown time until automatic shutdown (max. 23h and 59 min.);



• STANDARD SCHEDULE – schedule automatic switching on and off according to a predetermined schedule (daily, weekly);



• CIRCULATION SCHEDULE – define intervals of work and rest, for example 5 minutes of work, then 10 minutes of rest and this is repeated automatically;



• ARBITRARY SCHEDULE – set random on and off periods on specific days. This option is especially useful for imitating presence through lighting when you are not in your home.



INTELLIGENT SCENES

The device supports setting up a variety of automated scenes. You can activate a circuit (single devices or groups of devices) depending on the readings of a compatible temperature and humidity sensor, motion sensor, window opening sensor and many more.

VOICE CONTROL

The switch is compatible with Amazon Alexa and Google Assistant, allowing you to control home devices via voice commands, freeing your hands.

GROUPING OF DEVICES

Control multiple devices (controllers) at the same time with the touch of a button from your phone, on a schedule or with a voice command.

ACCESS SHARING

You can authorize other users to access device management, such as family members or colleagues.

ASSEMBLY AND INSTALLATION

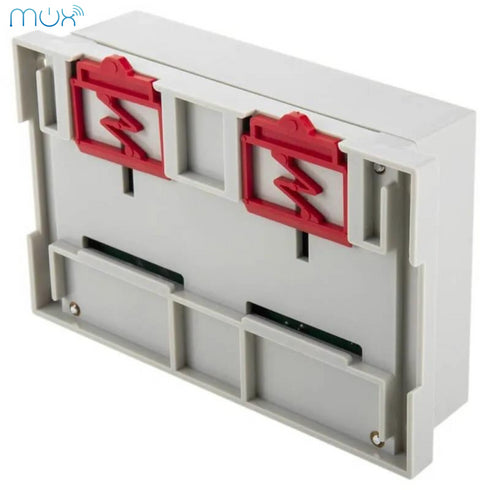

The device housing has holes for easy surface mounting. The rear cover is compatible with a standard DIN rail (38mm) installation.

Under the right removable cover is the K button for turning on, off and pairing to a WiFi network. Above it are LEDs showing the status of each relay (on or off).

For connection, screwless blocks with lever-type terminals are used, which facilitates the connection process. You just push the lever and insert the wire.

This controller can be connected to contactors, giving you the ability to control more powerful appliances.

WiFi 8 channel switcher with mobile app

• After installation, turn on the device's electrical power;



• Connect your mobile phone to a WiFi network (2.4Ghz), turn on Bluetooth and GPS;



• Open the Smart Life mobile application and tap the “+” icon in the upper right corner to add a new device;



• Select from the “Electrician” submenu the “Breaker (Wi-Fi)” option or use the “Auto Scan” function (automatic search) with activated GPS/Location on the mobile phone;



• If the breaker light does not flash quickly, press the white “K” button for 5-10 seconds until the light starts flashing quickly. The button is located under the right housing plate;



• Enter the password of the WiFi network and confirm that the indicator light flashes quickly;



• Wait for connection. After successful pairing/configuration, name the WiFi relay switch and the room where the device is installed (optional);



Features of Tuya WiFi 8 Channel Relay Switch
